Features and benefits
* Ease of use: They are quick to install and do not require specialized tools, making them suitable for temporary or on-site rigging applications.
* Strength: They are made from high-tensile steel and are designed to retain a high percentage of the rope's strength (often 80-92%) when properly assembled.
* Durability: Many are galvanized for long-term durability and weather resistance.
* Safety features: Some models include additional safety features like a cotter (split) pin, a safety bolt, or a long wedge for attaching a rope clip to further secure the dead end.
* Versatility: They can be used in a variety of applications, including home and garden, marine, commercial, and construction settings.
Finish:
All Wedge, Spelter and Fast and Super reeve Connector Sockets are finished with a Ropeblock-blue primer, or a hot dip galvanized finish.
Open Wedge Sockets Specifications:

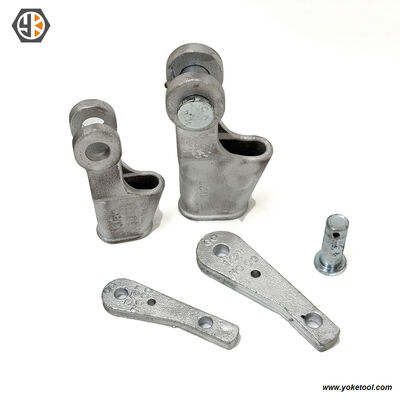

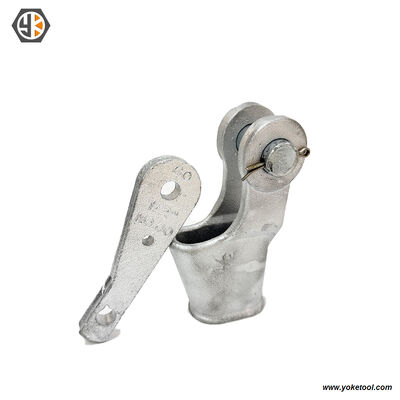

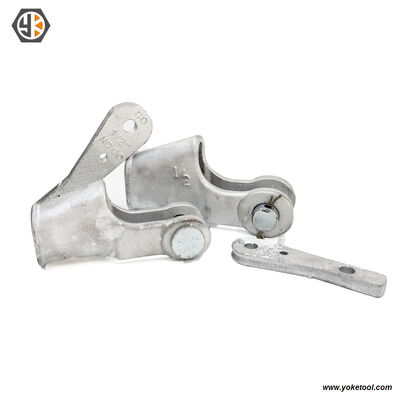

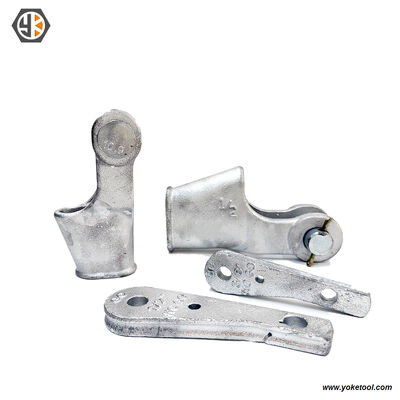

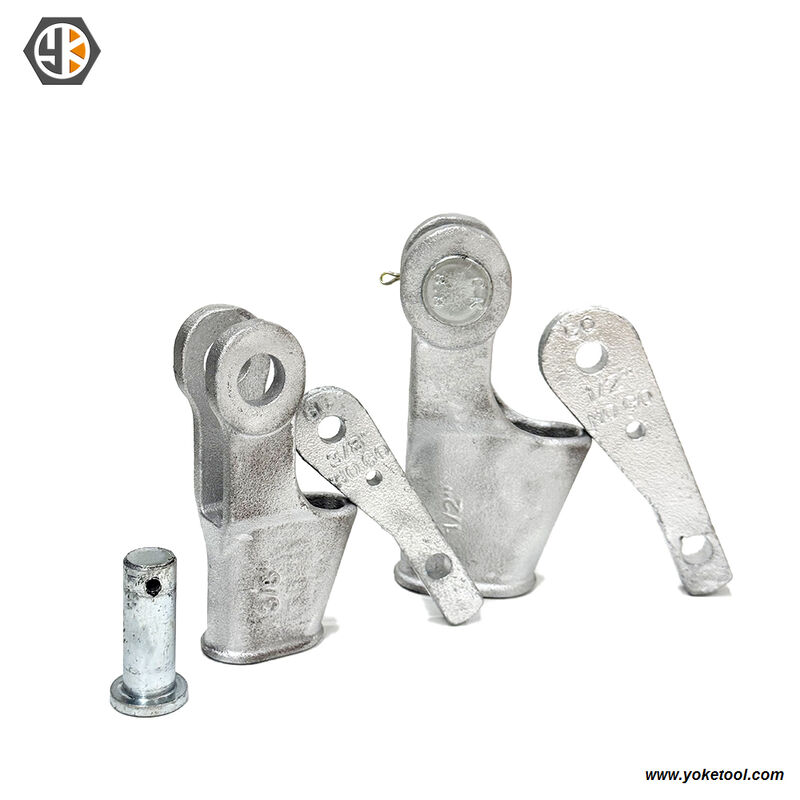

Open Wedge Socket
Material: Cast Steel
Finishing: Hot Dip Galvanized/ Painted Color
Size : 3/8, 1/2, 5/8, 3/4,7/8,1, 1-1/8,1-1/4
Accessories: Assembly includes Socket, Wedge, Pin and Wire Rope Clip
Type: With Bolt / With Pin
Open wedge sockets applications
Open wedge sockets are used for various industrial applications, including lifting, anchoring, and towing, to create a strong and reliable connection for steel wire ropes. Their versatility makes them suitable for fastening cables in construction projects like bridges and roofs, and for systems such as oil platforms and dredging. They are a popular choice for their ability to retain the rope's full breaking strength when assembled correctly and can be assembled for temporary or fixed connections.
- Lifting and hoisting: Used in cranes, winches, and other lifting gear.
- Anchoring: Securing systems for oil platforms, dredging material, and other fixed points.
- Towing: Connecting towing cables for various vessels and equipment.
- Construction: Fastening cables in bridges, roof structures, and other structural elements.
- Material handling: A wide variety of other material handling applications.
Key features
High strength: When properly assembled, they can meet or exceed the breaking strength of the wire rope.
Versatile: They can be used for a wide range of applications and are available in different types, such as those with a safety pin for added security.
Temporary or fixed connections: Can be used for temporary connections that can be re-tightened or for permanent, fixed terminations.
