Engineered for Strength, Designed for Performance.

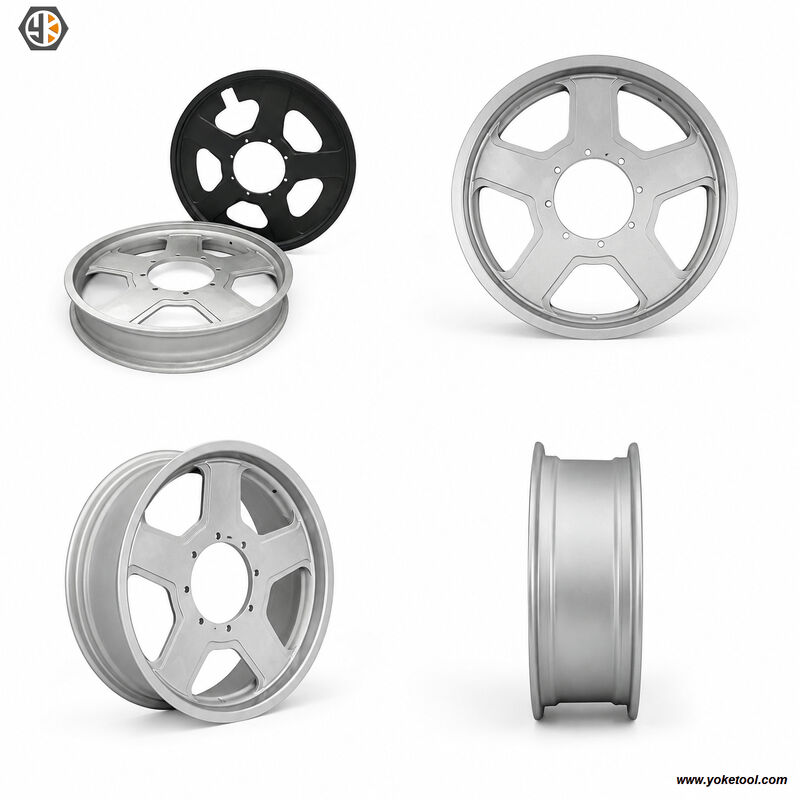

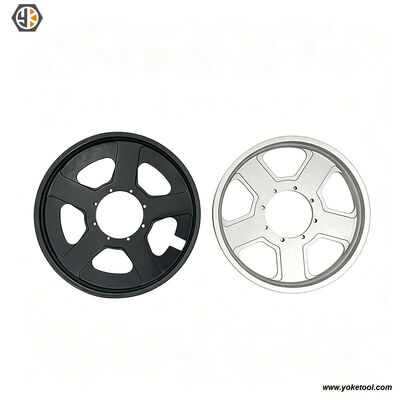

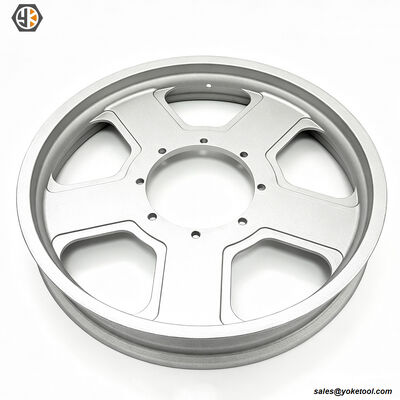

Our Low Pressure Die Casting (LPDC) Wheels represent the perfect balance between structural integrity and lightweight design. Unlike standard gravity casting, the LPDC process forces molten aluminum into the mold from the bottom up under controlled low pressure. This results in a much denser grain structure with zero porosity, ensuring maximum safety and durability even under high-speed stress.
Superior Finish and Precision:
Because the metal fills the mold more uniformly, our wheels feature a superior surface finish and exceptional dimensional accuracy. This translates to better dynamic balancing, reduced vibration, and a longer lifespan for tires and suspension components. Whether for OEM replacement or high-end aftermarket styling, our LPDC wheels meet the most rigorous global safety standards.
Key Technical Features of LPDC Wheels:
Advanced LPDC Process: Ensures a dense, void-free internal structure for ultimate safety.
High Strength-to-Weight Ratio: Lighter than gravity-cast wheels but significantly stronger.
Perfect Balancing: Precision-machined for smooth, vibration-free driving.
Custom Finishes: Available in painted, machined, polished, or powder-coated finishes.
Safety Certified: Designed to pass JWL, VIA, or TUV impact and fatigue tests.
Production Process of Low Pressure Die Casting Wheels
The production of low pressure die casting wheels begins with melting high-purity aluminum alloy ingots in a holding furnace at a constant temperature. The molten aluminum is then pushed upward into the preheated mold cavity under stable low air pressure for filling and solidification. After cooling and mold opening, the rough wheel blank is ejected and trimmed to remove sprues, runners and burrs. Next, heat treatment including solution and aging is performed to enhance hardness, strength and mechanical performance. Then follow precision machining such as turning and drilling to finish rim size and mounting holes. After surface cleaning, processes like painting, powder coating or machining finish are applied for appearance and corrosion resistance. Finally, strict quality inspections including air tightness test, impact test, dimensional checking and visual inspection are carried out before packaging and delivery.
Application of Low Pressure Die Casting Wheels
Low pressure die casting wheels are widely used in the automotive industry, especially for passenger cars, SUVs, light commercial vehicles and electric vehicles. As a key component of vehicle wheels, they bear the weight of the vehicle, transmit driving force and braking force, and ensure stable driving performance. Compared with other casting wheels, they have the advantages of dense internal structure, high mechanical strength, good dimensional accuracy and smooth surface, which can effectively improve driving safety and comfort.
Their excellent impact resistance and fatigue resistance make them suitable for various road conditions, from urban roads to mountainous and rural roads. In addition, the production process of low pressure die casting is environmentally friendly and efficient, which can realize mass production, meeting the large-scale demand of the automotive industry. They are also widely used in modified vehicles and special-purpose vehicles, as they can be customized according to different design requirements to match the overall style and performance of the vehicle, while ensuring long service life and reliable performance under harsh working conditions.
Yokelink Product Quality Inspection Report
We provide comprehensive inspection services for machine bolts, including SGS test bolts and formal Production Part Inspect Report (PPIR). The SGS tests verify the bolts’ compliance with international standards like ASTM A307 and IEEE C135.80, covering mechanical properties and corrosion resistance. The PPIR details all inspection items, ensuring each machine bolt meets dimensional, performance and quality requirements, providing reliable quality assurance for overhead line and industrial applications.
What are the main types of casting processes?
Based on the mold materials and pouring methods, the industry classifies casting into four main schools:
1. Sand Casting
Process Characteristics: The oldest and most commonly used process. A mold is made using specially prepared molding sand (sand mixed with binder), and metal is poured into it. The sand mold is destroyed after the casting is removed (disposable mold).
Suitable Scenarios: Low cost, suitable for making large, heavy parts ranging from a few kilograms to tens of tons. The surface will be relatively rough.
Typical Applications: Foundation bases for heavy iron towers, large valve housings.
2. Die Casting
Process Characteristics: Molten liquid metal is rapidly poured into a precision metal mold under high pressure and then cooled under pressure.
Suitable Scenarios: Extremely high production efficiency, extremely smooth surface, and high dimensional accuracy. Typically used for non-ferrous metals with low melting points, such as aluminum alloys and zinc alloys.
Typical Applications: Automotive engine housings, communication base station radiators.
3. Precision Casting / Investment Casting / Lost Wax
Process Characteristics: Also known as the traditional "lost-wax casting" method. A wax model is first made, then coated with refractory slurry. Heating melts the wax, creating a cavity, which is then filled with metal.
Suitable Scenarios: Extremely high precision, capable of producing very complex parts that do not require further finishing. Commonly used for stainless steel and alloy steel.
Typical Applications: Aero-engine blades, precision mechanical gears, high-end marine rigging.
4. Gravity Die Casting
Process Characteristics: The mold is made of heat-resistant alloy steel, and molten metal flows into the mold solely by gravity. The mold can be reused thousands of times.
Suitable Scenarios: Combines the advantages of sand casting and die casting, resulting in a dense internal structure and good mechanical properties in the casting.
Typical applications: The vast majority of high-strength aluminum alloy electrical fittings (such as bolt-type tension clamps and suspension clamp bodies) are made using this process.
Product Classification by Casting Process (by Material)
Grey Cast Iron: Inexpensive, good shock absorption, but relatively brittle.
Ductile Cast Iron: Contains spheroidizing agents, significantly improving strength and toughness, even comparable to carbon steel. In electrical fittings, load-bearing tension clamps and ball joint arms are almost entirely made of ductile iron.
Cast Steel: Designed for applications requiring extremely high tensile strength and impact resistance, such as hooks for heavy-duty cranes.
Cast Aluminum Alloy: Lightweight, highly conductive, and non-magnetic (does not generate hysteresis loss or heat). Specifically used for clamping overhead bare conductors (ACSR).
Cast Bronze/Brass: Extremely corrosion-resistant and has excellent electrical conductivity. The silicon bronze acorn clamp in a lightning protection grounding system is a classic example.
Applications of Low-Pressure Casting Technology
Primarily made of aluminum alloys, but also usable with magnesium alloys, copper alloys, cast iron, etc., focusing on castings requiring density, pressure resistance, high strength, and low porosity:
Automotive Industry: Car wheels, engine cylinder heads, cylinder blocks, intake manifolds, suspension brackets, chassis structural components, battery housings, gearbox housings;
New Energy Industry: New energy vehicle motor housings, electronic control housings, battery load-bearing structural components;
General Machinery Hardware: Pump bodies, valve bodies, pipeline fittings, agricultural machinery parts, engineering machinery structural components;
Others: Motorcycle wheels, lightweight aluminum castings for rail transit, precision aluminum castings for handicrafts.
Core Applications: Complex aluminum parts requiring airtightness, load-bearing capacity, and tensile strength, and unsuitable for porosity or shrinkage.
Frequently Asked Questions (FAQ)
Q1: What is the main advantage of Low Pressure Die Casting over Gravity Casting for wheels?
A: The primary advantage is the metal density. In LPDC, the molten aluminum is forced into the mold under pressure, which eliminates air pockets and internal shrinkage. This results in a wheel that is stronger and more reliable at higher speeds compared to gravity-cast wheels, which rely only on weight to fill the mold and are more prone to internal defects.
Q2: Does the LPDC process make the wheel lighter?
A: Yes. Because the LPDC process creates a stronger internal structure, engineers can design thinner spokes and rims without sacrificing safety. This leads to a lighter wheel, which reduces unsprung weight, improving the vehicle's acceleration, braking, and overall fuel efficiency.
Q3: What kind of quality control is used for LPDC wheels?
A: At our facility, every wheel undergoes a rigorous 3-step inspection: 1) X-Ray Inspection to detect any internal porosity; 2) Leakage Testing to ensure the airtight integrity of the rim; and 3) Dynamic Balancing to ensure a smooth ride. We also perform destructive fatigue tests on batch samples to verify structural limits.
Q4: Can LPDC wheels be customized for specific PCD or Offset?
A: Absolutely. While the main wheel body is cast using the LPDC mold, the final Bolt Circle (PCD), Center Bore, and Offset (ET) are precision-machined using CNC equipment. This allows us to customize the fitment for a wide variety of vehicle makes and models based on customer requirements.
Q5: Is heat treatment necessary for low pressure cast wheels?
A: Yes, most high-quality LPDC wheels undergo T6 Heat Treatment (solutionizing and artificial aging). This metallurgical process significantly increases the tensile strength and hardness of the aluminum alloy, ensuring the wheel can withstand the intense impacts and stresses of daily driving and harsh road conditions.
